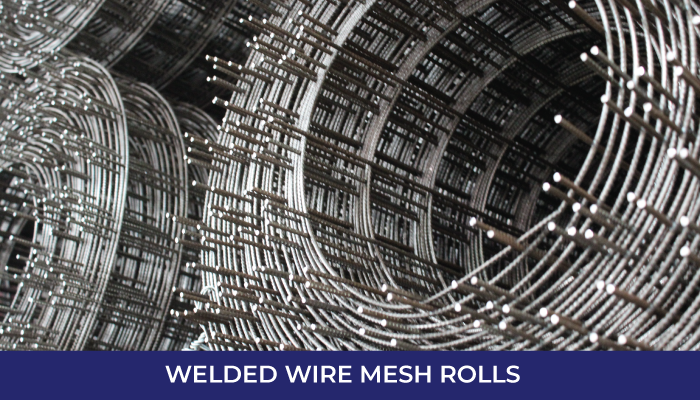

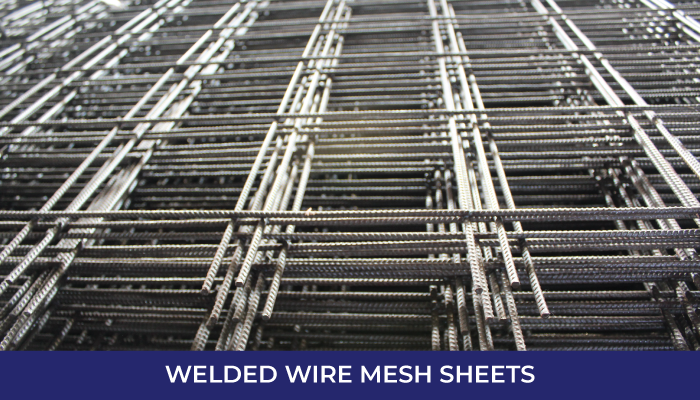

Supplied in both rolls and sheets, our welded wire mesh is manufactured in accordance with market specifications and international standards(ASTM).
It is high in structural strength as tested by RADCO for axial loading, transverse loading, and racking shear. It is also highly moisture resistant, durable and has limited thermal conductivity.
Trinrico accepts requests for Drawn Cold Steel Wire that conform to AISI, BS and ASTM standard specifications for use in the manufacturing of nails, welded wire mesh, electric welding electrodes, and wire elements used for the reinforcement of concrete forms and piles. Wire sizes ranging from 4guage(0.2253”) to 12guage(0.1055”) are supplied upon request in either smooth or deformed high ribbed surface finish.
| Reference |
Mesh Size Nominal Pitch Main(mm) | Mesh Size Nominal Pitch Cross(mm) | Diameter Main(mm) | Diameter Cross(mm) | Nominal Size of Mats Width(m) x Length(m) |
|---|---|---|---|---|---|
| A393 | 200 | 200 | 10 | 10 | 2.40 X 4.80 |
| A252 | 200 | 200 | 8 | 8 | 2.40 X 4.80 |
| A193 | 200 | 200 | 7 | 7 | 2.40 X 4.80 |
| A142 | 200 | 200 | 6 | 6 | 2.40 X 4.80 |
| A98 | 200 | 200 | 4 | 4 | 2.40 X 4.80 |
| A63 | 200 | 200 | 4 | 4 | 2.40 X 4.80 |
*Table is referential and other sizes are available
| Mesh Size Nominal Pitch Main Cross (inches) | Mesh Size Nominal Pitch Main Cross (inches) | Diameter Main Cross SWG | Diameter Main Cross SWG | Nominal Size of Rolls |
|---|---|---|---|---|
| 2 | 2 | 10g – 8g | 10g – 8g | 7ft x 100ft |
| 3 | 3 | 10g – 5g | 10g – 5g | 7ft x 100ft |
| 6 | 6 | 10g – 5g | 10g – 5g | 7ft x 100ft |
Highest Quality
- Raw material procured from 1st Tier International Mills
- International quality and production standards
- Cold rolled reinforcement wires, welded for greater strength
- Formed by electro welding parallel steel wires together, using a cross wire at exact intervals
Applications
- Roof slabs, driveways and porches
- Wall panels, floor slabs and building foundations
- Highways, pavements and box drains
- Culverts and cylindrical concrete pipes
- Jetties and piers
Advantages
- Accurate cross-sectional areas of reinforcement
- Time and cost-effective alternative to tying steel
- More than 50% greater tensile strength
- Prevents concrete failure by distributing load stresses
- No scrap liability
- High-ribbed for maximum concrete adhesion
- Test certificates available for all our quality products
