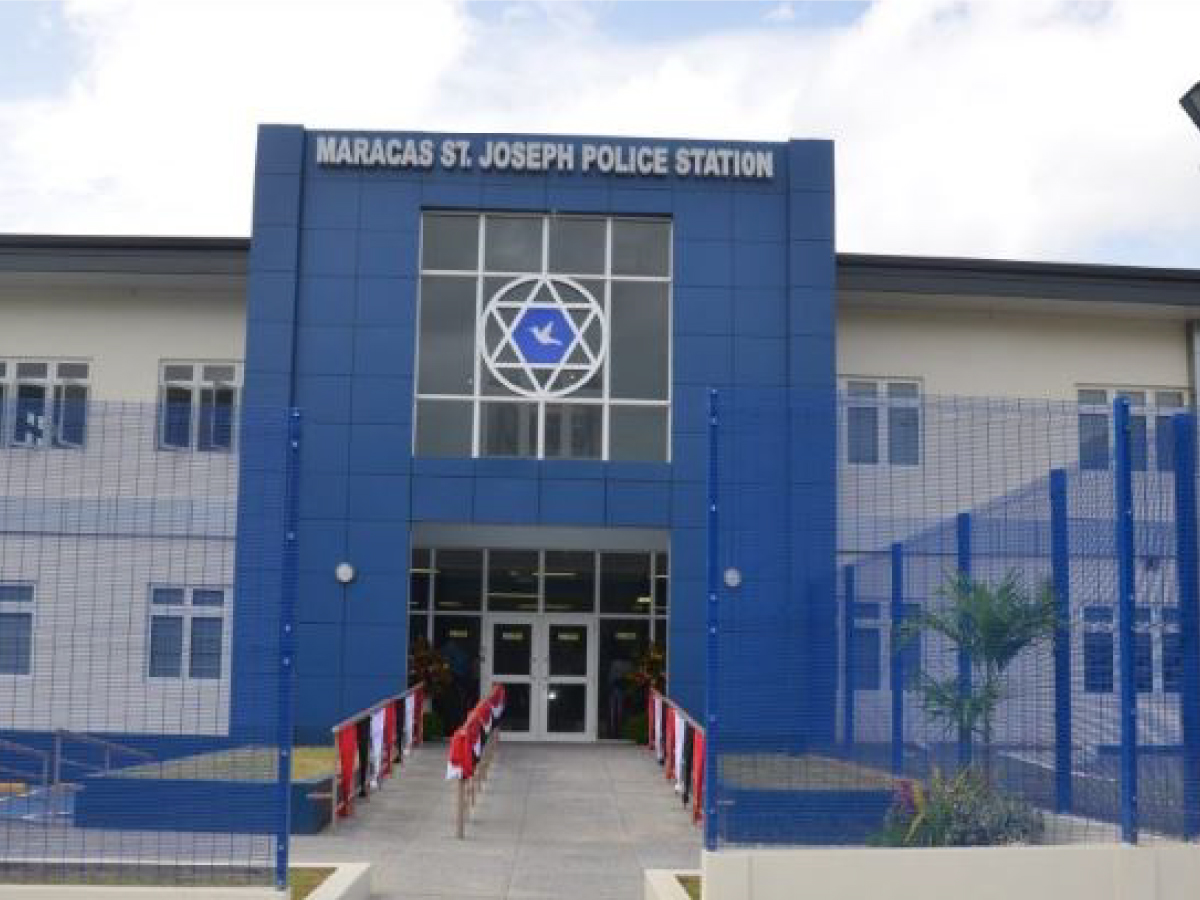

Ideal for areas where maximum security is required such as Police and Fire stations, Military and Coast Guard compounds, Prison facilities, Hydrogen, Methanol gas, Oil, and other hazardous industries.

Height: 2.10m

Number of Fixings: 8
Width: 2.40m
Number of Beams: 3
Post Height: 2.60m
Post Section: 100 x 50mm
Termination Panels: Duplex (galvanized & polyester coated)
Termination Posts: Duplex (galvanized & polyester coated)

Height: 2.24m

Number of Fixings: 8
Width: 2.40m
Number of Beams: 3
Post Height: 3.00m
Post Section: 100 x 50mm
Termination Panels: Duplex (galvanized & polyester coated)
Termination Posts: Duplex (galvanized & polyester coated)

Height: 3.00m

Number of Fixings: 8
Width: 2.40m
Number of Beams: 3
Post Height: 3.50m
Post Section: 100 x 50mm
Termination Panels: Duplex (galvanized & polyester coated)
Termination Posts: Duplex (galvanized & polyester coated)

*Table is referential and other sizes are available

Height (m) No. of fixings Width (m) No. of Beams Post Height (m) Post section (mm) Termination Panels Termination Posts
2,10 8 2,40 3 2,60 100 x 50 Duplex(galvanized & polyester coated) Duplex(galvanized & polyester coated)
2,24 8 2,40 3 3,00 100 x 50 Duplex(galvanized & polyester coated) Duplex(galvanized & polyester coated)
3,00 8 2,40 3 3,50 100 x 50 Duplex(galvanized & polyester coated) Duplex(galvanized & polyester coated)

*Table is referential and other sizes are available
