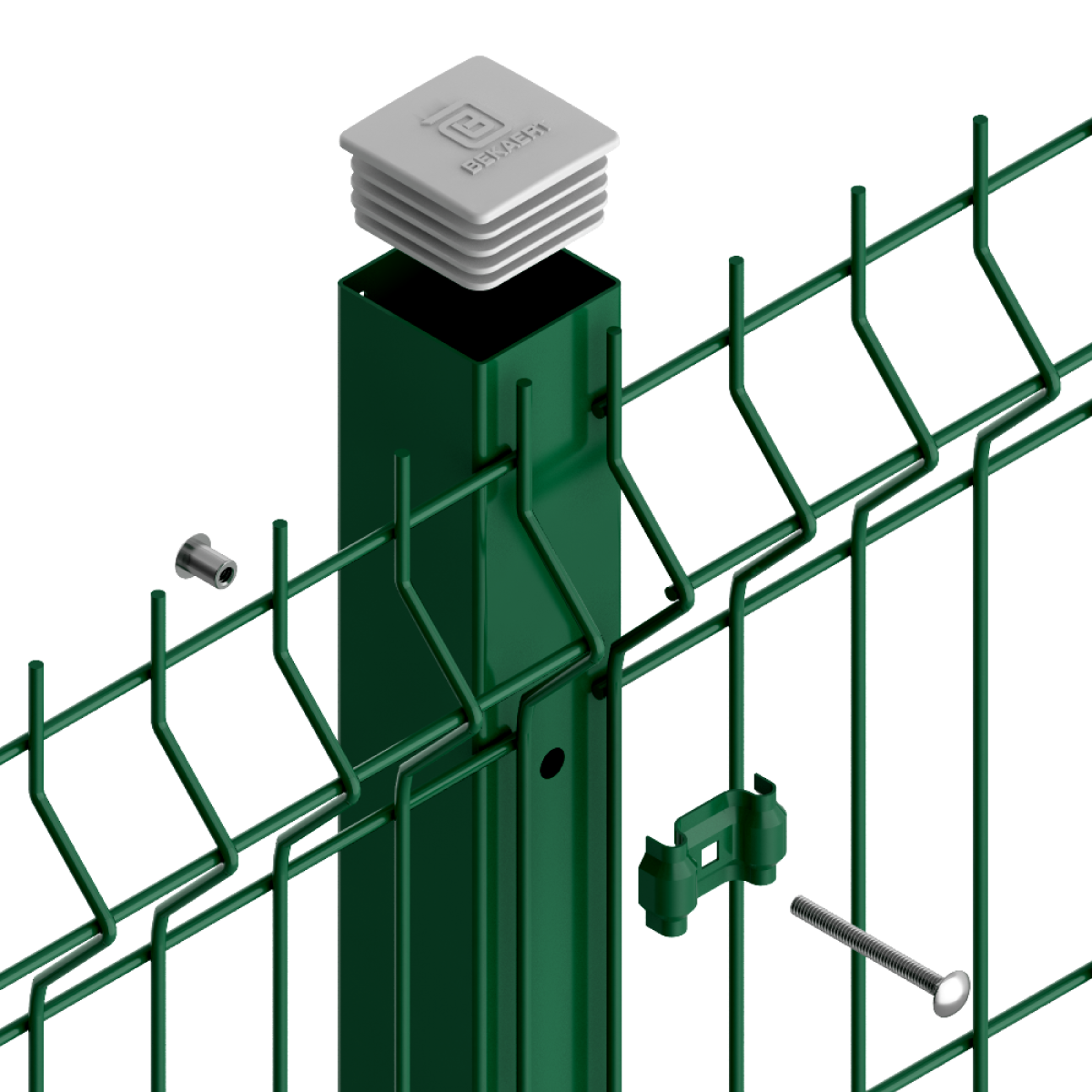

Our Pro Fence Color panels and posts is a welded wire mesh system including metal fixing devices. They are galvanized and polyester coated to the highest standard.

Height: 1.11m

Number of Fixings: 3
Width: 2.50m
Number of Beams: 3
Post Height: 1.60m
Post Section: 60 x 60mm
Termination Panels: Duplex (Galvanized & Polyester coated)
Termination Posts: Duplex (Galvanized & Polyester coated)

Height: 1.31m

Number of Fixings: 3
Width: 2.50m
Number of Beams: 3
Post Height: 1.80m
Post Section: 60 x 60mm
Termination Panels: Duplex (Galvanized & Polyester coated)
Termination Posts: Duplex (Galvanized & Polyester coated)

Height: 1.80m

Number of Fixings: 4
Width: 2.50m
Number of Beams: 4
Post Height: 2.30m
Post Section: 60 x 60mm
Termination Panels: Duplex (Galvanized & Polyester coated)
Termination Posts: Duplex (Galvanized & Polyester coated)

Height: 2.08m

Number of Fixings: 5
Width: 2.50m
Number of Beams: 5
Post Height: 2.60m
Post Section: 60 x 60mm
Termination Panels: Duplex (Galvanized & Polyester coated)
Termination Posts: Duplex (Galvanized & Polyester coated)

Height: 2.40m

Number of Fixings: 5
Width: 2.50m
Number of Beams: 5
Post Height: 3.00m
Post Section: 60 x 60mm
Termination Panels: Duplex (Galvanized & Polyester coated)
Termination Posts: Duplex (Galvanized & Polyester coated)

*Table is referential and other sizes are available

Height (m)                No. of Fixings                Width (m)                No. of Beams                 Post Height (m)                Post Section (mm)           Termination
Panels          		 Termination
Posts
1,11 3 2,50 3 1,60 60 x 60 Duplex (Galvanized & Polyester coated) Duplex (Galvanized & Polyester coated)
1,31 3 2,50 3 1,80 60 x 60 Duplex  (Galvanized & Polyester coated) Duplex (Galvanized & Polyester coated)
1,80 4 2,50 4 2,30 60 x 60 Duplex (Galvanized & Polyester coated) Duplex (Galvanized & Polyester coated)
2,08 5 2,50 5 2,60 60 x 60 Duplex (Galvanized & Polyester coated) Duplex (Galvanized & Polyester coated)
2,40 5 2,50 5 3,00 60 x 60 Duplex (Galvanized & Polyester coated) Duplex (Galvanized & Polyester coated)

*Table is referential and other sizes are available

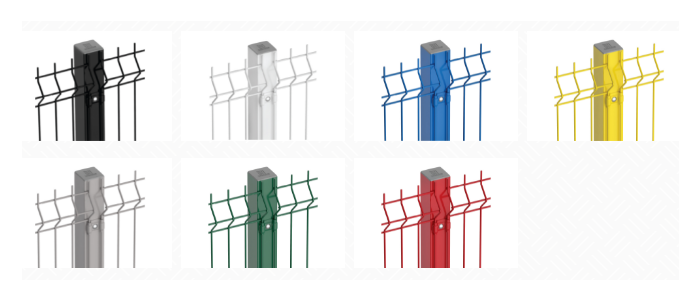

Pro Fence Color
Pro Fence Color
Pro Fence Color
Pro Fence Color

Applications

  • Ideal homes and gardens.
  • For highways and public areas.
  • For industrial Zones and warehouses.
  • Stadiums.
  • Schools, Shopping areas, and large areas.

Corrosion Resistance

  • Our Pro Fence Color has Grade A(high) corrosion resistance, having passed the 1,000hr salt spray test

Level of Security

  • Pro Fence Color is rated Grade A in Security ratings
