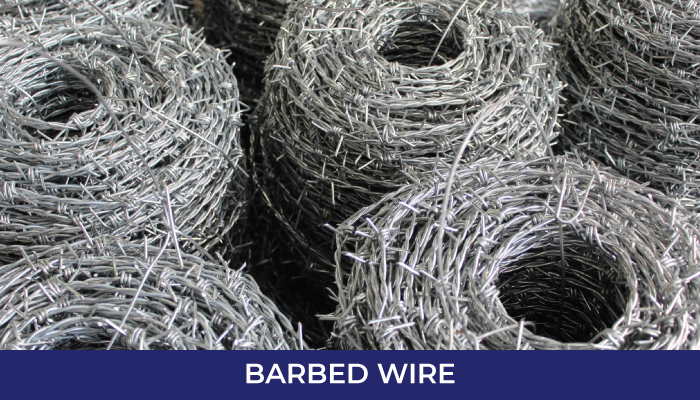

Barbed Wire is manufactured to the ASTM A121 specification using 12.5guage (0.099”) galvanized wire having a minimum strand breaking strength of 950lbs. Our barbed wire machine is equipped with a scale so barbed wire can be coiled onto a reel to give a predetermined weight and length.
Barbed wire general specifications
| Ref | Wire Dia(MM) | Min. breaking load of strand | No. of Points | Barb Spacing (INCHES) | Roll weight (LBS) |
|---|---|---|---|---|---|
| TBW 12.5 | 2.51 | 4230N | 4 | 4 | 40 |
| TBW 13.5 | 2.18 | 4230N | 4 | 4 | 40 |
*Table is referential and other sizes are available
Stainless Steel Razor Wire specifications
| Ref | Description | Roll weight (KGS) |
|---|---|---|

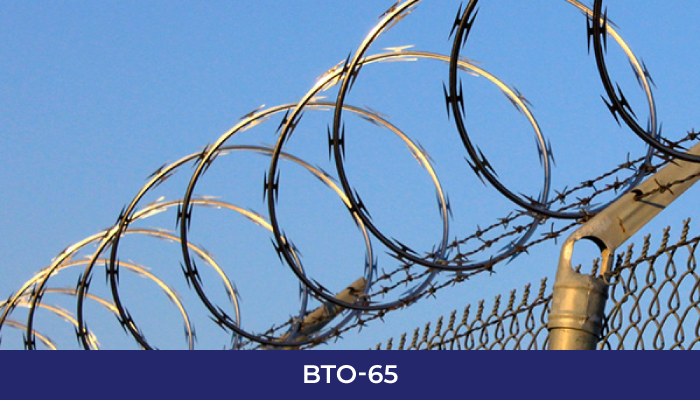

| BTO-65 | Stainless steel razor wire in coil of 36 loops, single strand, SS 304 tape and wire | 4.8 |

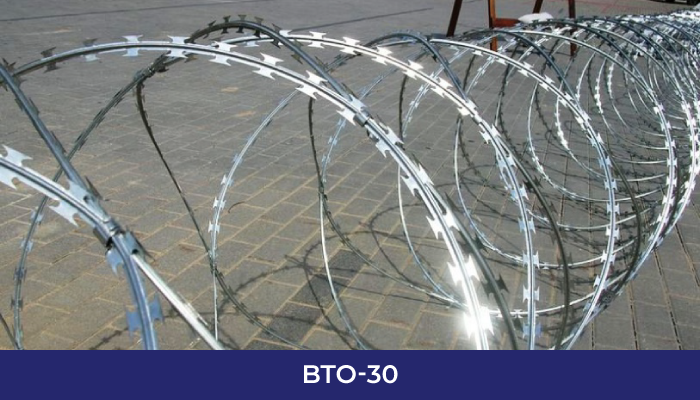

| BTO-30 | Stainless steel razor wire in coil of 50 loops, single strand, SS 304 tape and wire 500mm diameter | 7.8 |
